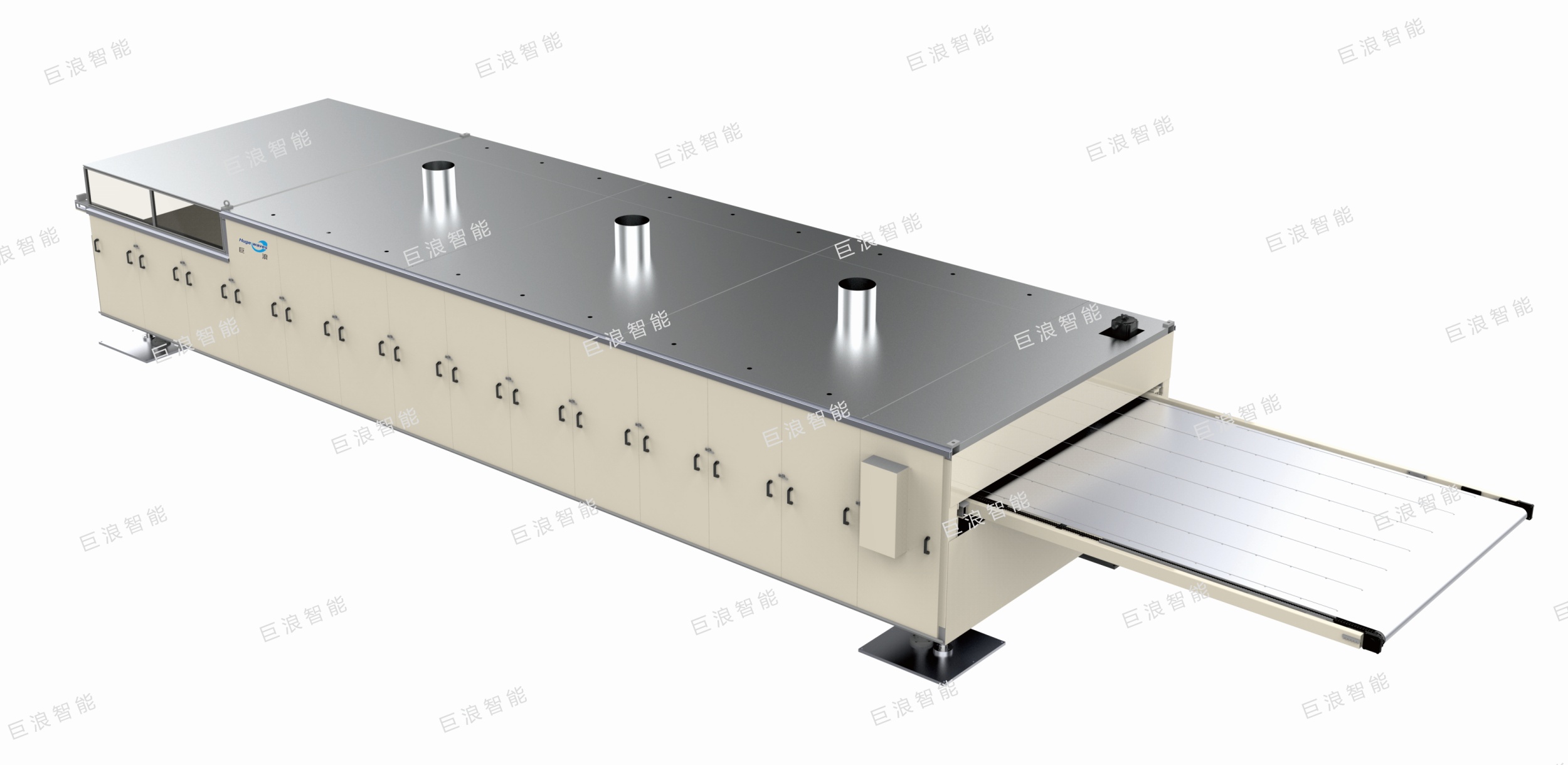

伸缩式热风循环隧道烘箱
产品简介:

伸缩式热风循环隧道烘箱是指炉盘可自由伸缩、同时网链旋转传输被加热物料的热风循环隧道加热设备,具有节能、效率高、升温快、应用范围广的显著特点。炉盘伸缩可直接将被加热物体送入压机模压成型,可以节省机器人或人工取料,还可以避免机器人针刺机构对较软材质的损伤。

The retractable heated air circulation tunnel oven refers to the heated air circulation tunnel heating device which fixes the heated object through furnace plate and transmits heated material in a rotary manner through net chain; it is superior in terms of energy conservation, efficiency, temperature rise and application scope. The retractable furnace plate can send the heated object directly into the pressing mold for shaping, which could avoid mechanical or manual feeding and protect soft materials from being damaged by mechanical piercing mechanism.



设备咨询 索取报价
拨打全国免费热线了解更多详情

18781921786
伸缩式热风循环隧道烘箱
产品概述

伸缩式热风循环隧道烘箱是指炉盘可自由伸缩、同时网链旋转传输被加热物料的热风循环隧道加热设备,具有节能、效率高、升温快、应用范围广的显著特点。炉盘伸缩可直接将被加热物体送入压机模压成型,可以节省机器人或人工取料,还可以避免机器人针刺机构对较软材质的损伤。

The retractable heated air circulation tunnel oven refers to the heated air circulation tunnel heating device which fixes the heated object through furnace plate and transmits heated material in a rotary manner through net chain; it is superior in terms of energy conservation, efficiency, temperature rise and application scope. The retractable furnace plate can send the heated object directly into the pressing mold for shaping, which could avoid mechanical or manual feeding and protect soft materials from being damaged by mechanical piercing mechanism.


选配:1.桁架上料机械手;2.板料复合机构;3.接触式加热机;4.压机上下料机器人;5.伸缩送料机构

Optional: 1. Truss feeding manipulator;  2. Sheet composite mechanism;  3. Contact heating machine;  4. Material cutting robot on press;  5. Telescopic feeding mechanism


*可根据客户的需求定制

*Able to be customized

*参数及图片可能变化,具体以技术协议为准

*Parameters and photos may vary. The technical agreement prevails.

技术参数

序号

S/N

型号Model

加热区数量Number of heating zones

最高设定温度℃

Max. Temperature ℃

最大加热材料(L*W)

Max. Heated Material (L*W)

网链速度

mm/s

Net Chain Speed

mm/s

温度均匀度

Temperature uniformity

温度波动度

Temperature fluctuation

1

HW-HAC-EO21720CA

2

400

1700*2000

1-800

±3%

±2℃

2

HW-HAC-EO31720CA

3

400

1-800

±3%

±2℃

3

HW-HAC-EO61720CA

6

400

1-800

±3%

±2℃

4

HW-HAC-EO21827CA

2

400

1800*2700

1-800

±3%

±2℃

5

HW-HAC-EO31827CA

3

400

1-800

±3%

±2℃

6

HW-HAC-EO61827CA

6

400

1-800

±3%

±2℃

7

HW-HAC-EO22130CA

2

400

2100*3000

1-800

±3%

±2℃

8

HW-HAC-EO32130CA

3

400

1-800

±3%

±2℃

9

HW-HAC-EO62130CA

6

400

1-800

±3%

±2℃

10

HW-HAC-EO23030CA

2

400

3000*3000

1-800

±3%

±2℃

11

HW-HAC-EO33030CA

3

400

1-800

±3%

±2℃

12

HW-HAC-EO63030CA

6

400

1-800

±3%

±2℃
